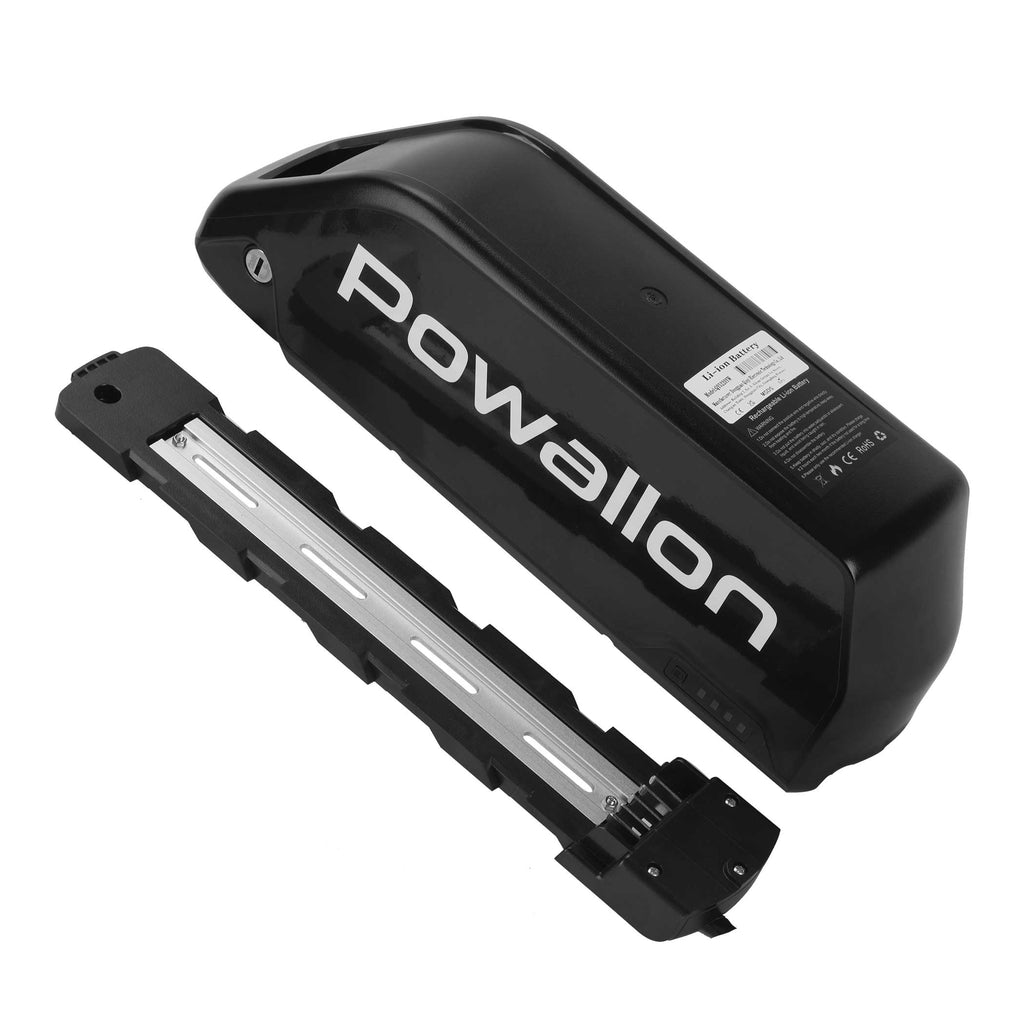

The Powallon 52V 20Ah Downtube Battery is designed for riders seeking top-tier power, range, and safety. Built with Samsung INR21700-50E cells, it delivers 1040Wh of energy and supports up to 30A continuous discharge for high-performance 500W–1500W systems. Featuring a smart 30A BMS, it ensures full protection from overcharge, short circuit, and temperature extremes. Pre-assembled with a 5-pin blade connector and XT60 output port, installation is quick and hassle-free. Includes a 58.8V 3A charger, mounting accessories, and a protective bag for complete convenience.
KEY FEATURES
-

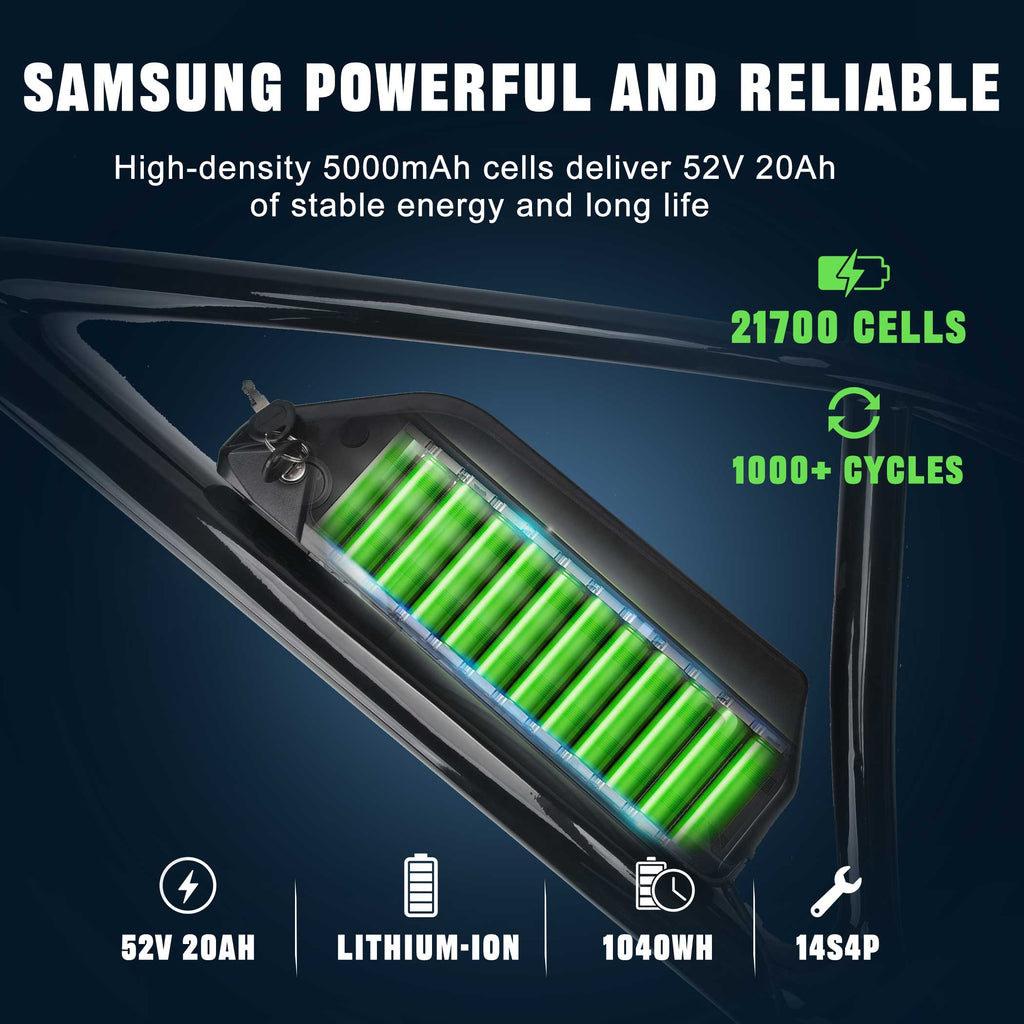

HIGH PERFORMANCE BATTERY: Built with Samsung 21700-50E cells, delivering 52V 20Ah (1040Wh) and 30A continuous output.
-

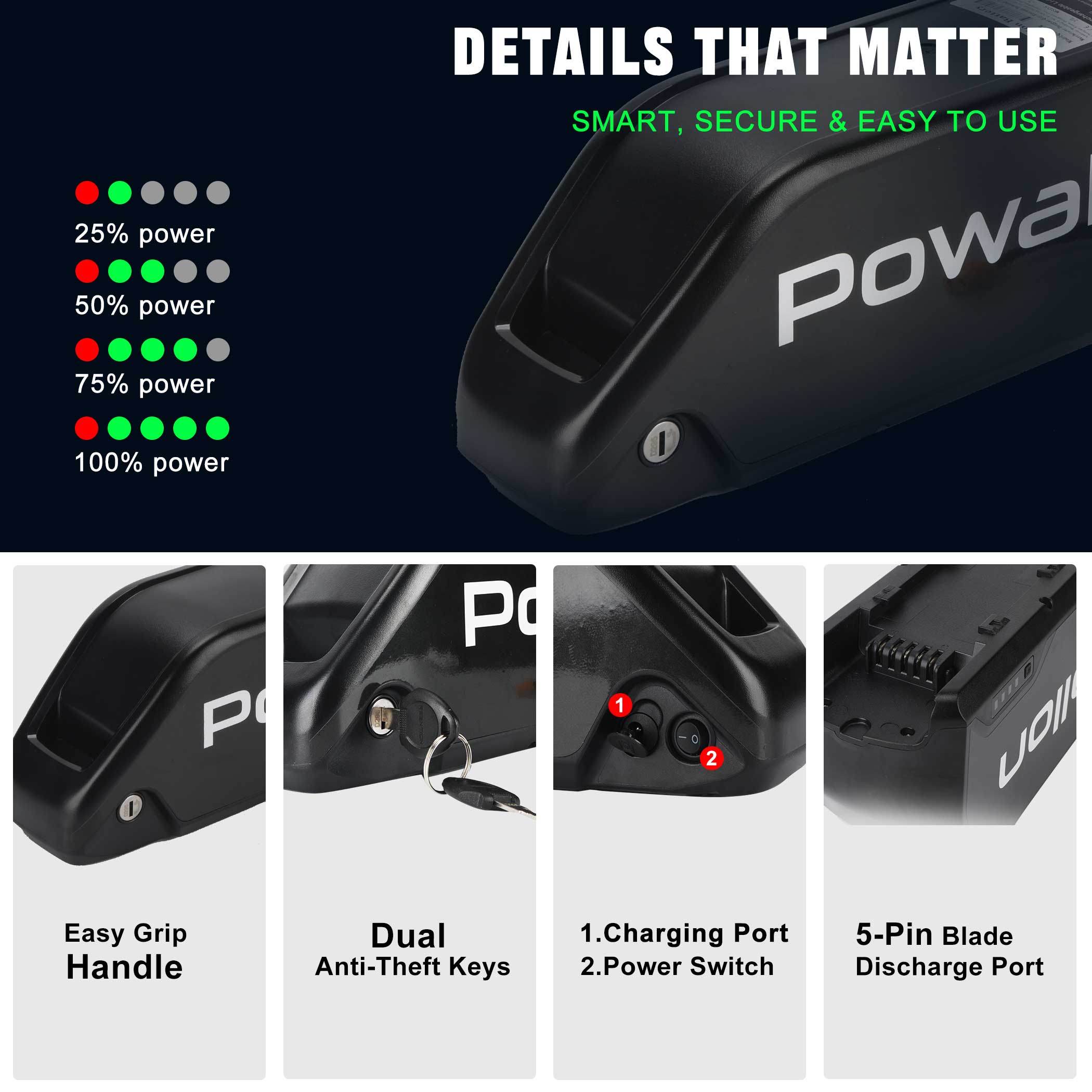

EASY INSTALLATION: Pre-wired XT60 port and 5-pin blade connector allow fast plug-and-play setup.
-
SMART 30A BMS: Protects from overcharge, discharge, short circuit, and temperature fluctuations.
-
RELIABLE RANGE: 16–19 miles on throttle or 23–35 miles with pedal assist on 1000W systems.
-
COMPLETE PACKAGE: Includes charger, cables, screws, tools, keys, and protective cover.
-
LONG LIFESPAN: 1000+ charge cycles ensure consistent performance for years of use.
SPECIFICATIONS
| Parameter |
Value |
| Battery Type |
Lithium-ion (Samsung INR21700-50E) |
| Nominal Voltage |
52V |
| Nominal Capacity |
20.0Ah |
| Energy |
1040Wh |
| Configuration |
14S4P (56 cells) |
| Max Continuous Discharge |
30A |
| Peak Current |
60A |
| Charger |
58.8V 3A DC2.1 |
| Charging Time |
Approx. 6–8 hours |
| Cut-off Voltage |
39.2V |
| Max Charging Voltage |
58.8V |

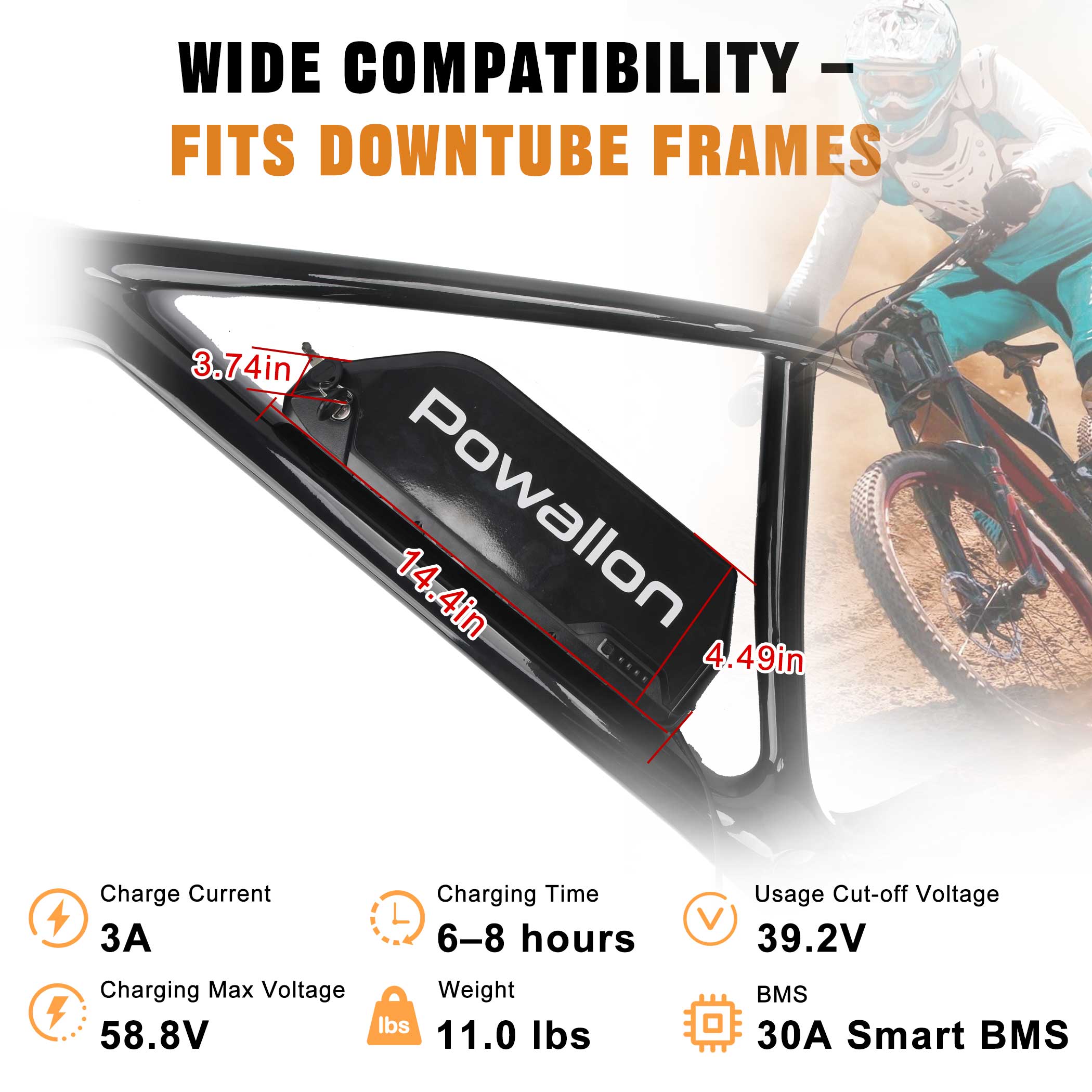

| Size (L×W×H) |
36.8 × 9.5 × 12.5 cm |
| Weight |
About 5.0 kg |
| Cycle Life |
>1000 cycles |
| Discharge Port |
5-Pin Blade Connector |
| Output Connector |
XT60 Female |
| USB / Type-C |
Not Supported |
| BMS |
30A Smart BMS (Overcharge / Overdischarge / Temp / Short / Balance) |

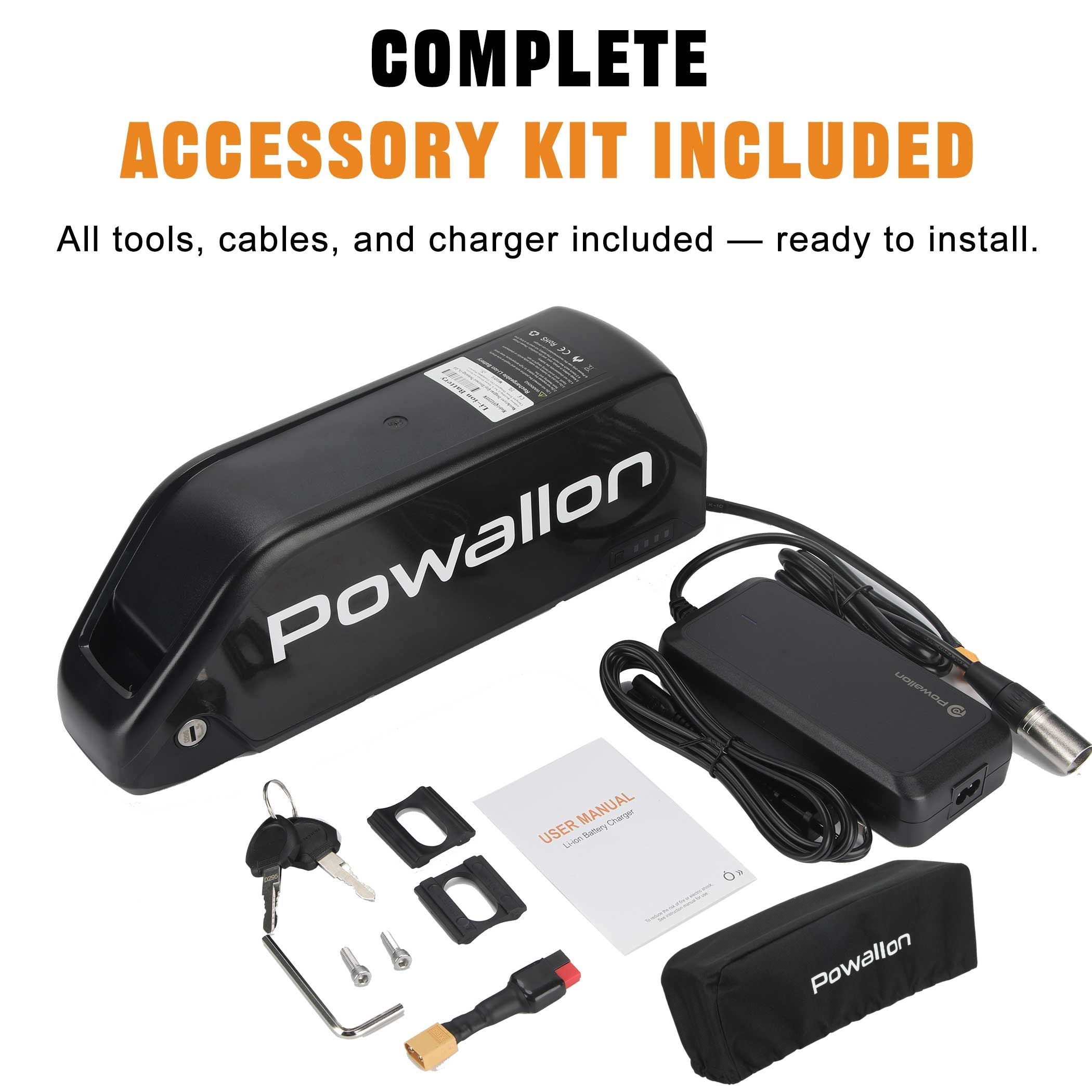

PACKAGE INCLUDED
-
1 × Powallon 52V 20Ah Battery
-
1 × 58.8V 3A Charger
-
1 × Anderson to xt60 Cable
-
2 × Keys
-
1 × Allen Wrench
-
2 × Screws
-
2 × Rubber Pads
-
1 × Protective Battery Bag
-
1 × User Manual
