Description
Convert your fat tire bike into a high-performance electric beast with the BAFANG G063 rear hub motor kit. Built to dominate all terrains, this powerful system delivers extreme torque, unmatched speed, and the rugged durability you need for adventure, commuting, or hauling.
Will This BAFANG EBIKE KIT FIT MY EBIKE ?
• Tire Size: The kit is designed to fit 26"x4.0" fat tires.
• Bike Type: It is optimized for wide tire mountain bikes, cruisers, and hunting bikes.
• Rear Dropout Width: Your bike's rear dropout must be 190mm wide. The kit is quick-release compatible with open slotted dropout frames.
Key Features:
Unleash Monster Performance
-

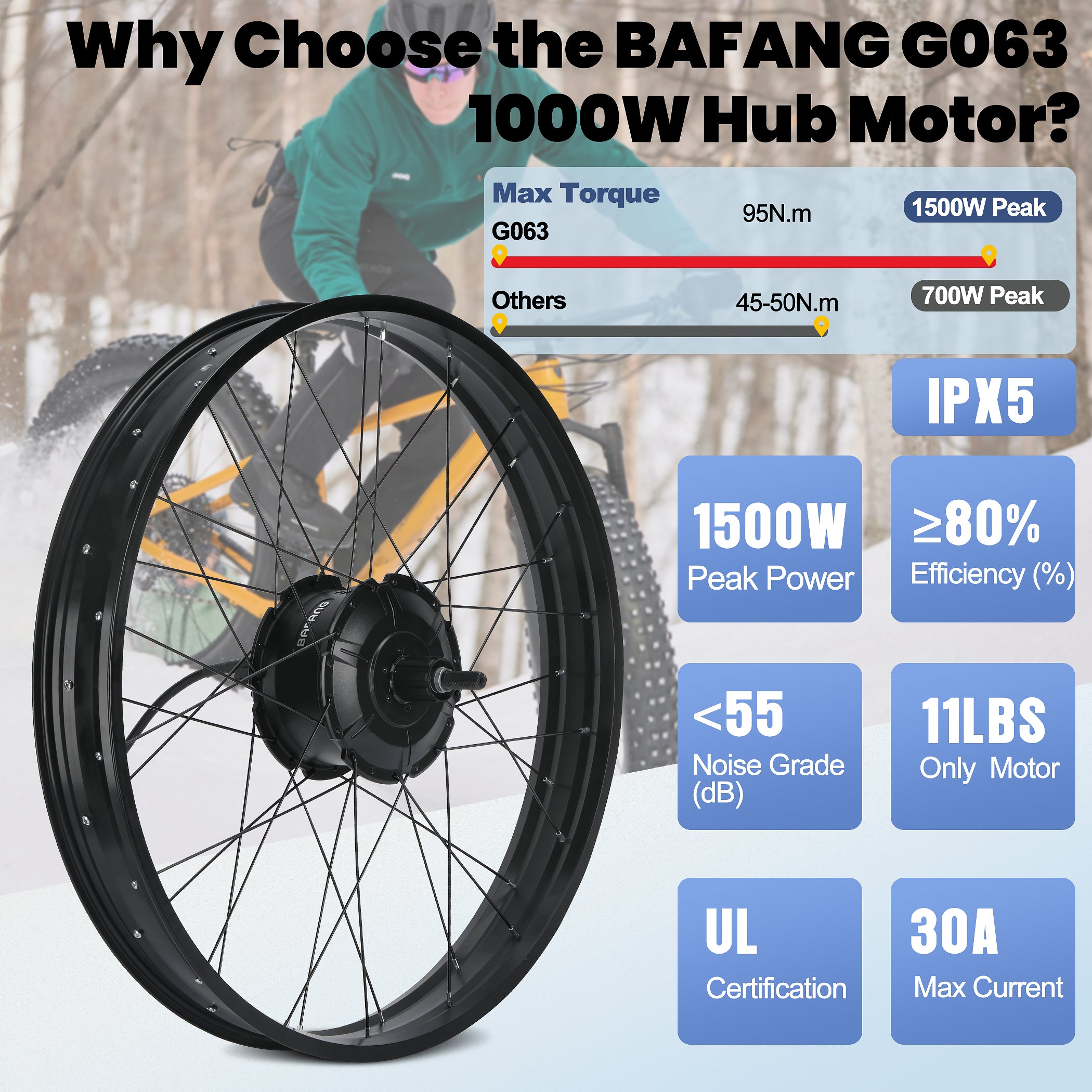

1000W Rated Power, Up to 1500W Peak – Nearly 2 horsepower of raw energy for explosive acceleration and High performance.
-
Massive 95N·m Torque – Tackle steep climbs, heavy loads, or rough trails with ease.
-
Top Speed 35+ MPH – One of the fastest e-bike conversion kits available today.
-
A true upgrade for riders seeking high speed and aggressive off-road capability.
Designed for Fat Tire E-Bikes
-
Fits 26"x4.0" Tires – Optimized for wide tire mountain bikes, cruisers, and hunting bikes.
-
190mm Rear Dropout Width – Quick-release compatible with slotted dropout frames.
-
Supports 1–10 Speed Cassette Freewheels & Disc Brakes – Build your perfect drivetrain.
-
Plug-and-Play Installation – Includes installation guide and all necessary components for confident setup.

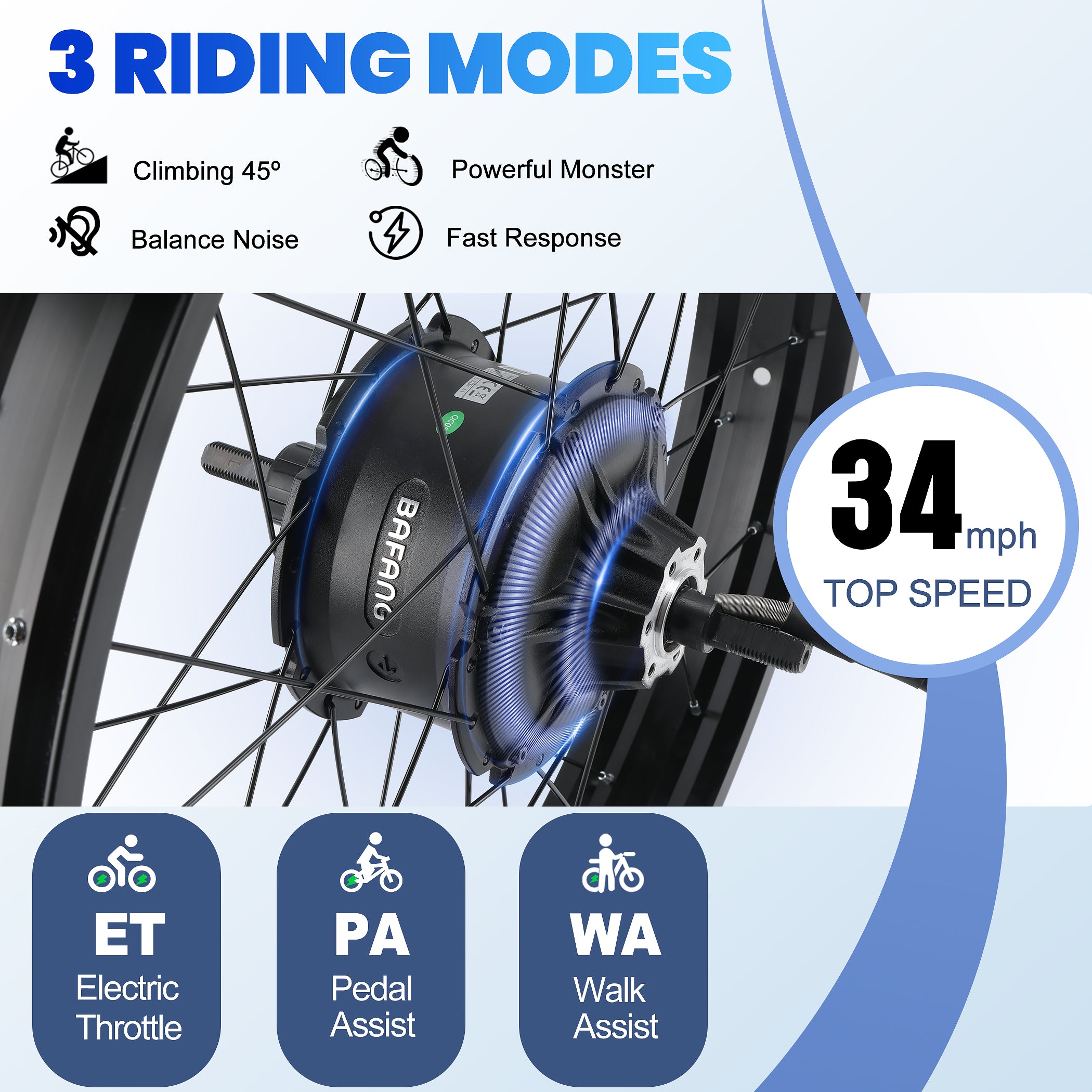

Multiple Drive Modes for Any Ride
-
Throttle Mode (Electric Only) – Power on demand, no pedaling required.
-
Pedal Assist (PAS Mode) – Smooth motor support as you pedal.
-
Walk Assist Mode – Makes pushing the bike easy when walking.
-
Human Power Mode – Ride like a normal bike when needed.
Perfect for commuting, long-distance touring, off-road trails, mountain climbs, or even heavy hauling.
High Efficiency & Reliability
-
Efficiency > 80% – More power to the wheel, less energy loss.
-
Smooth, Quiet Operation – Ride with confidence thanks to advanced noise control.
-
Built to Last – Premium internal components for long-term durability and performance.
Trusted BAFANG Quality
-
Powered by the renowned BAFANG G063 rear hub motor, a proven performer in the e-bike industry.
-
UL certified / IPX6 water-resistant – Safe, durable, and ready for all conditions.
-
Compatible with Class 3 electric bikes, backed by reliable after-sales support.

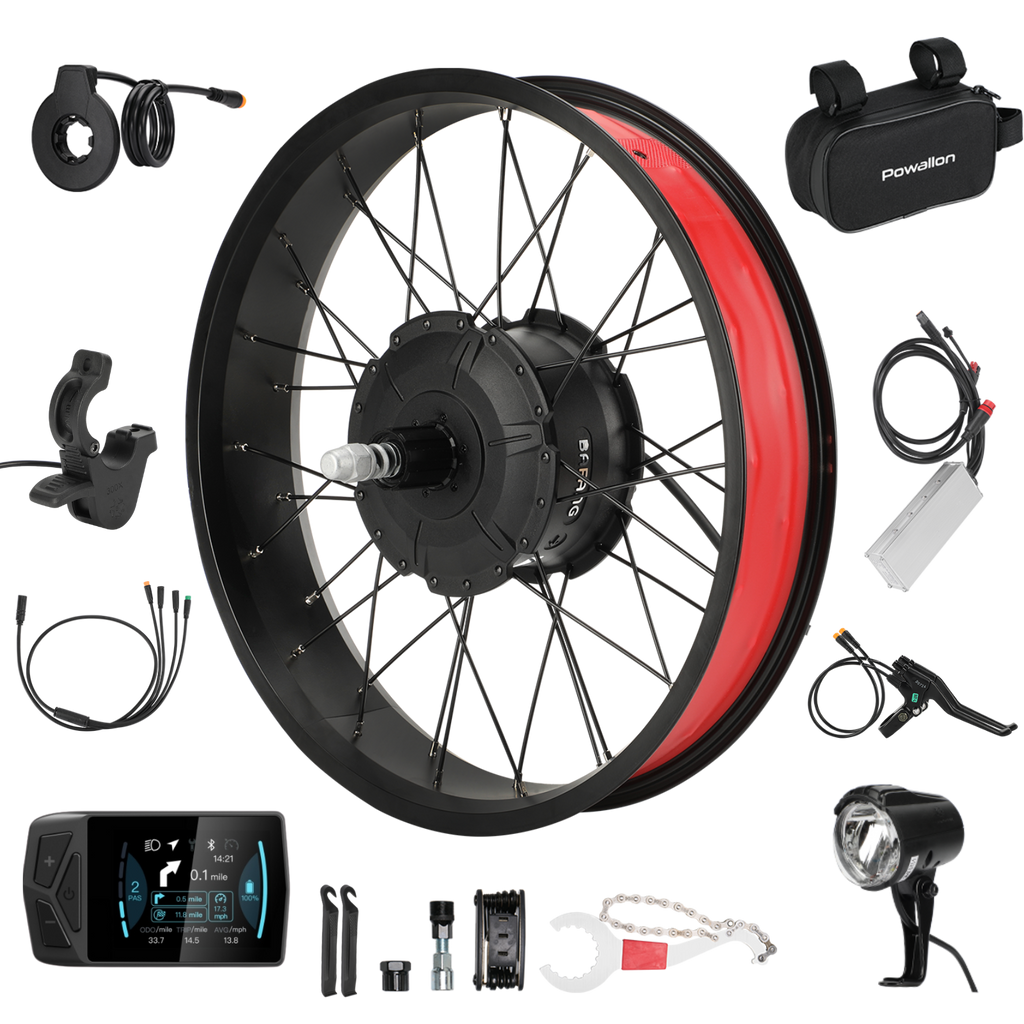

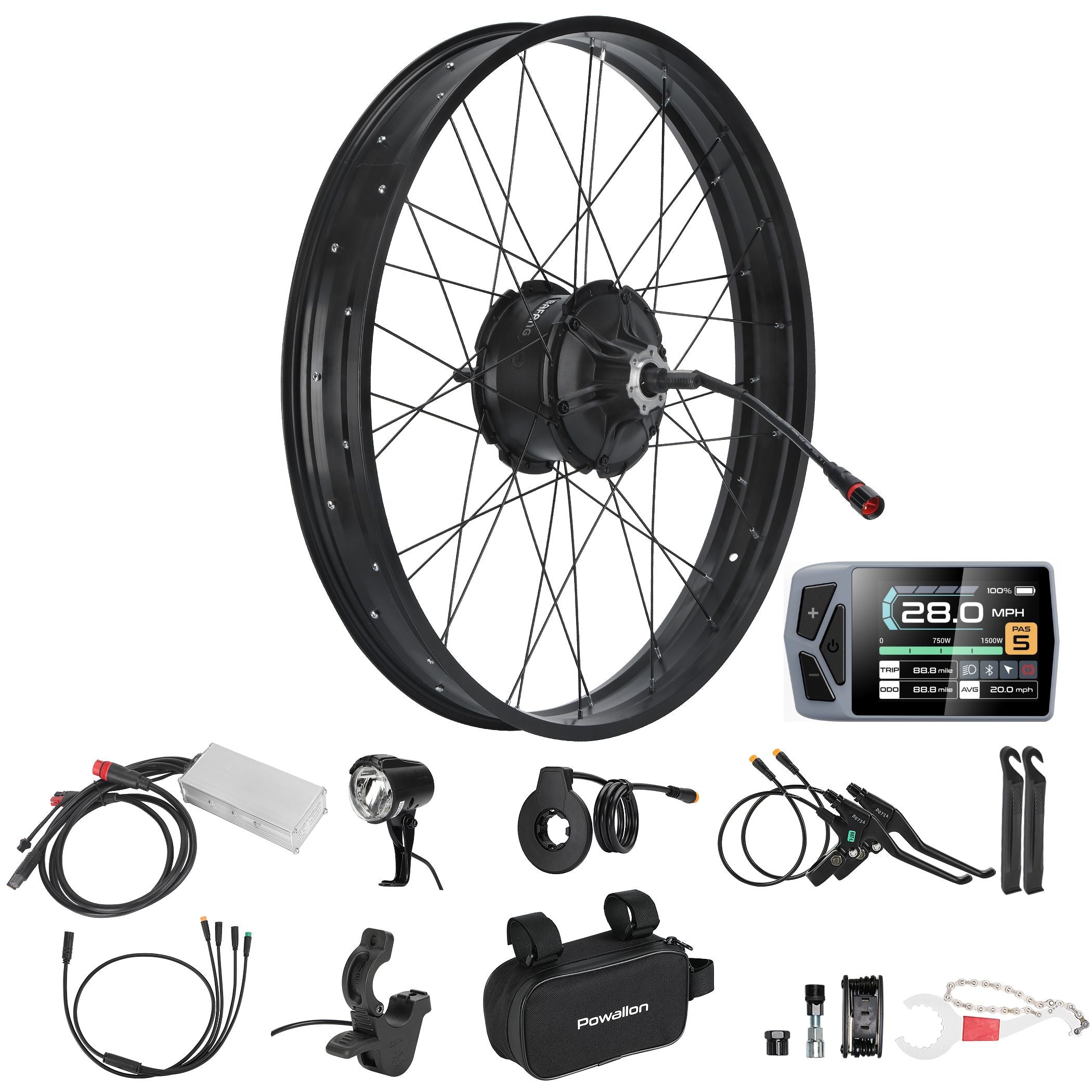

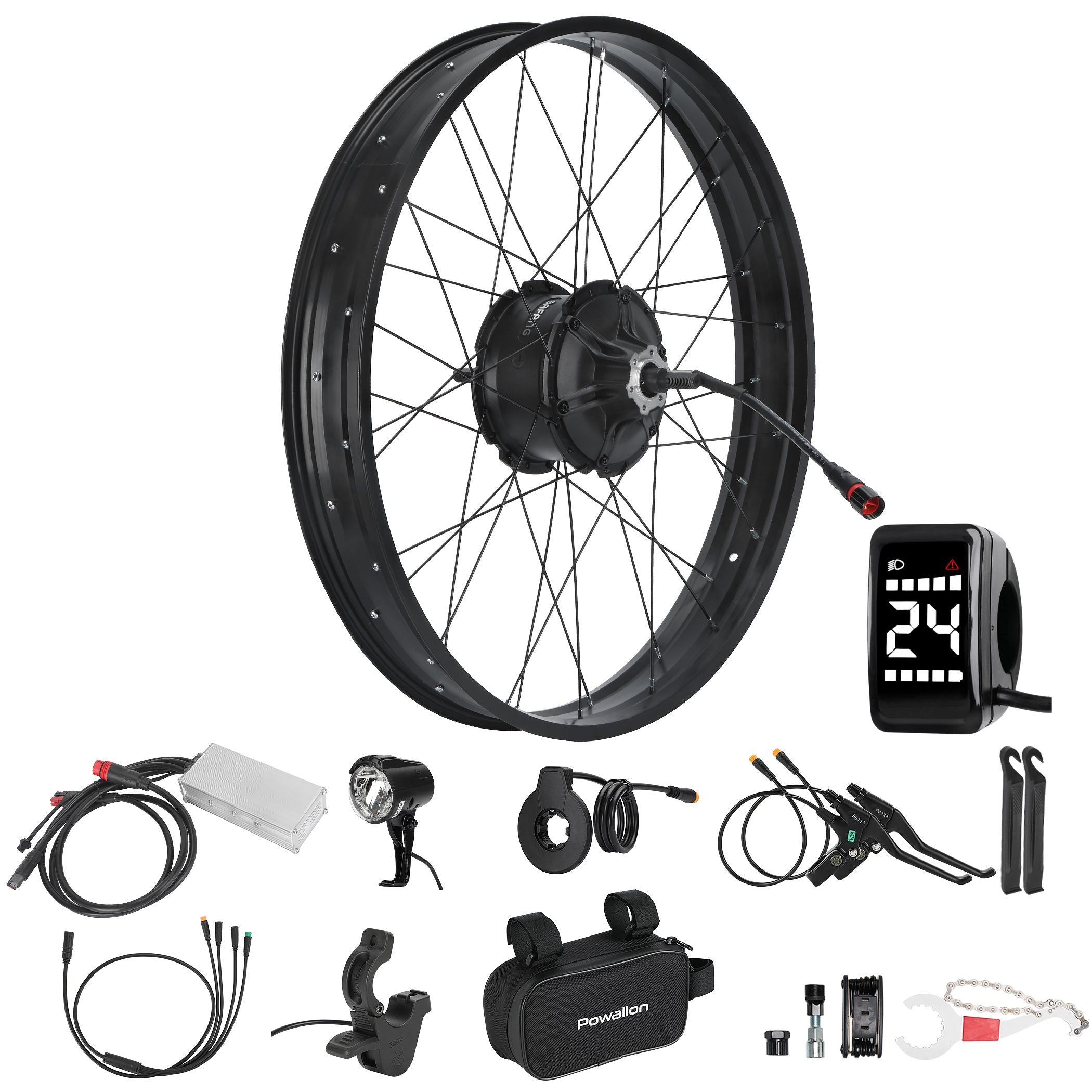

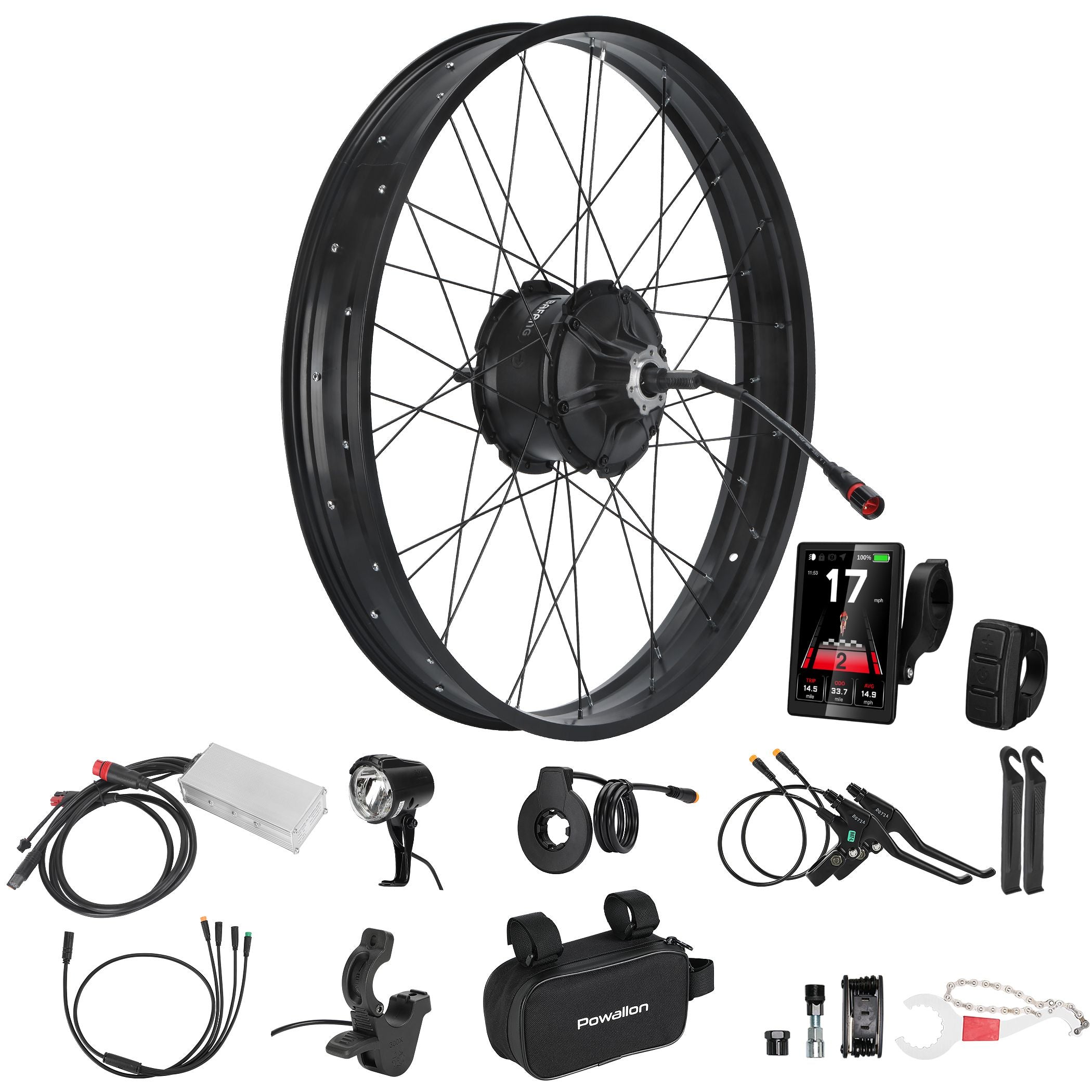

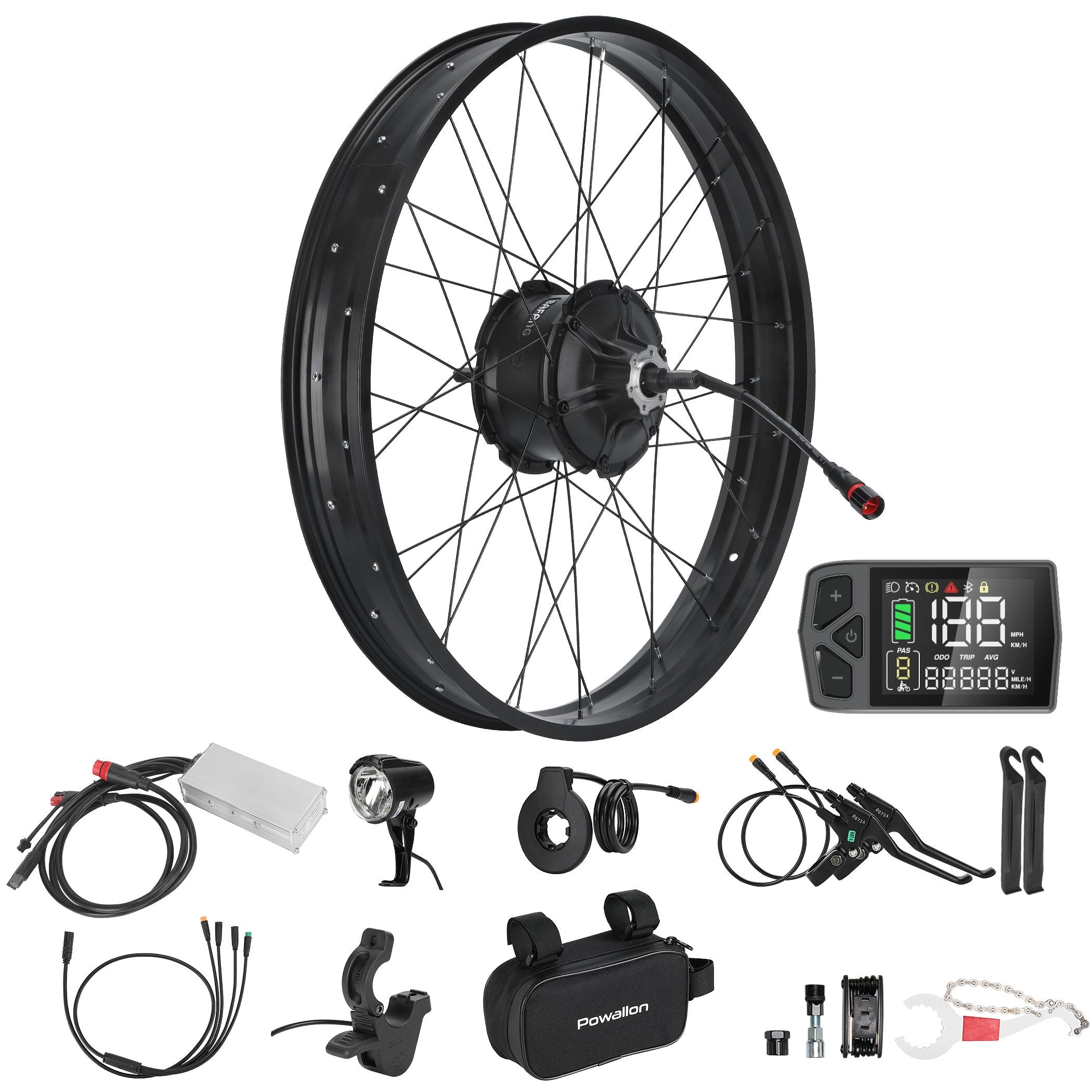

What’s in the Box
-
BAFANG G063 1000W Rear Motor (pre-installed in 26"x4.0" rim)
-
30A Controller
-
Optional Display (LCD/LED variants)
-
Thumb Throttle
-
Brake Levers
-
PAS Sensor
-
1T4 Waterproof Cable
-
Headlight
-
Controller Bag
-
Tire Levers & Tool Kit
-
Installation Manual & Video Guide

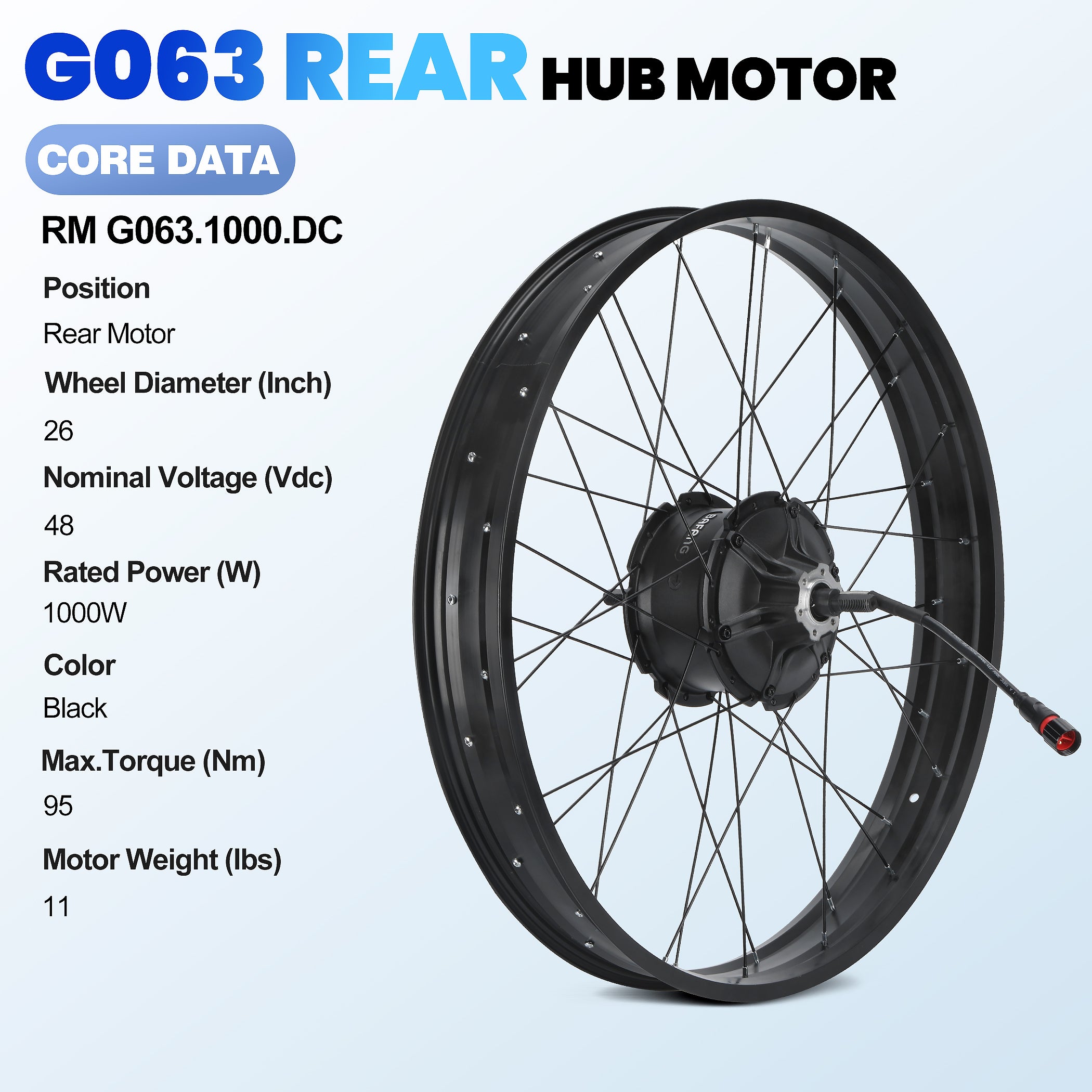

BAFANG G063 1000W Rear Motor Specs
| Specification | Detail |
|---|---|
| Motor Type | Rear Hub Motor |
| Model | G063 ( RM G0630.1000.DC ) |
| Nominal Voltage (Vdc) | 48V |
| Rated Power (W) | 1000W |
| Peak Power | Up to 1500W |
| Max. Possible Torque | 95N·m |
| Top Speed | 35+ MPH (45+ km/h) |
| Efficiency | > 80% |
| Wheel Diameter (Inch) | 26 inch (specifically for Fat tire) |
| Tire Compatibility | 26"x4.0" Fat Tires |
| Rear Dropout Width | 190mm |
| Brake Compatibility | Disc-Brake |
| Sprocket Wheel Support | 6 - 8 or 8 - 10 speed sprocket wheels |
| Spoke Specification | 36H*12G |
| Ingress Protection (IP) | IP X6 |
| Certifications | CE / UL2849 (UL certified) |
| Weight | 4.9 kg 11 lbs (only motor) |
| Color | Black |
| Operation | Smooth, Quiet Operation |
| Ebike Class Support | Compatible with Class 3 electric bikes |
BAFANG G062 vs G063 Motor Comparison - Ours
| Feature | G062 1000W | G063 1000W |
| Rated Power | 1000W | 1000W |
| Voltage | 48V Compatible | 48V Compatible |
| Max Current | 25A | 30A |
| Max Torque | 80 N.m | 95 N.m |
| Dropout Compatibility | 175mm |
190mm (Fat Bike Specific)
|
| Weight | 4.5 kg | 4.9 kg |
| Noise Level | Quiet |
Very Quiet (Heavily Sealed)
|
Shipping and Returns Overview
Free Shipping
U.S. Stock Available: Delivery in 3–7 business days.
If U.S. Stock Unavailable (International Shipping): Delivery in 20–45 business days.
30 Days Returns
Warranty Overview
All Powallon products include a 1-year warranty from the delivery date. We cover defects and performance issues with fast repair or replacement—USA-based support included.
