Description
Transform your regular bike into an electric bike with this 48V 500W front motor conversion kit. Designed for 20-inch wheels, it offers high performance with speeds up to 28mph and supports both V-brakes and disc brakes. This complete kit includes all necessary components for easy installation and hassle-free conversion.
Product Overview
Powerful Motor System
This 48V 500W motor assembly with peak 900W power provides a smooth ride with enough torque to tackle hills and rough terrain. Experience excellent performance and reliability.
Compatible and Versatile Brake System
Designed for 20-inch front wheels, this kit supports tire sizes from 1.5 to 2.4 inches and works with both V-brakes and disc brakes for safe and efficient stopping power.
Easy Installation
Easily convert your standard bike into an electric bike with this complete conversion kit. All necessary accessories are included for a hassle-free installation process.
Speed and Performance
Reach speeds of 20-28mph with a peak torque of 45Nm. Whether commuting or enjoying long rides, this kit ensures a fast and smooth experience.
Complete Conversion Kit
The kit includes everything you need for the conversion: motor assembly, controller, display (optional), throttle, brake sensors, 1T4 wiring harness, and more. No additional purchases required.
Key Features
-

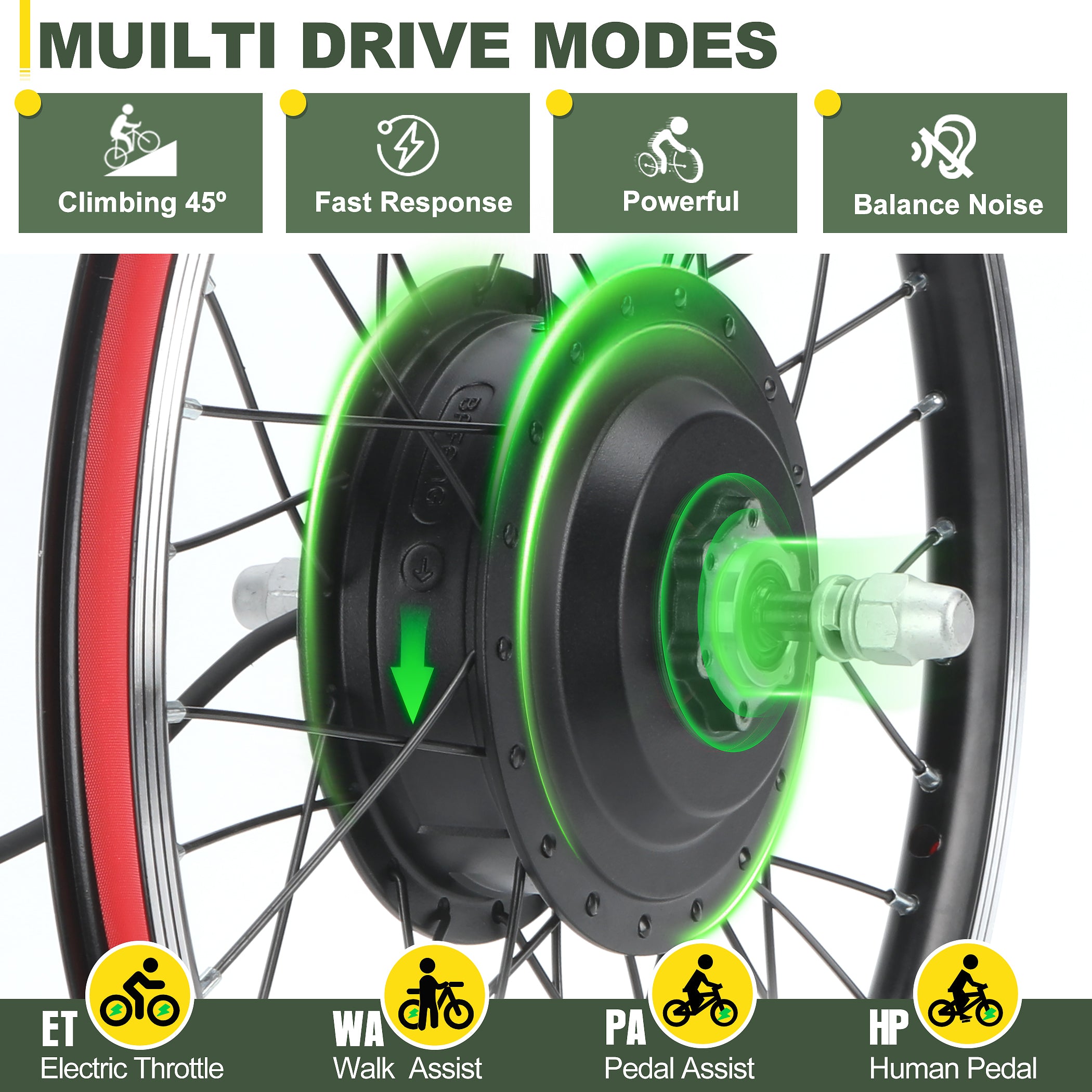

Multiple Riding Modes: Choose from electric throttle, pedal assist, walk mode, or manual riding mode to suit various riding needs.
-
Customizable Display Options: Options for basic functions (battery level, speed, pas level) or advanced features (Bluetooth, navigation, mobile app control) for a personalized experience.
-
Waterproof & Certified: IPX5 waterproof rating and UL certification ensure durability and compliance with Class 1 & 2 eBike regulations.
-
Sustainability: Eco-friendly and efficient, offering a reliable way to upgrade your bike.

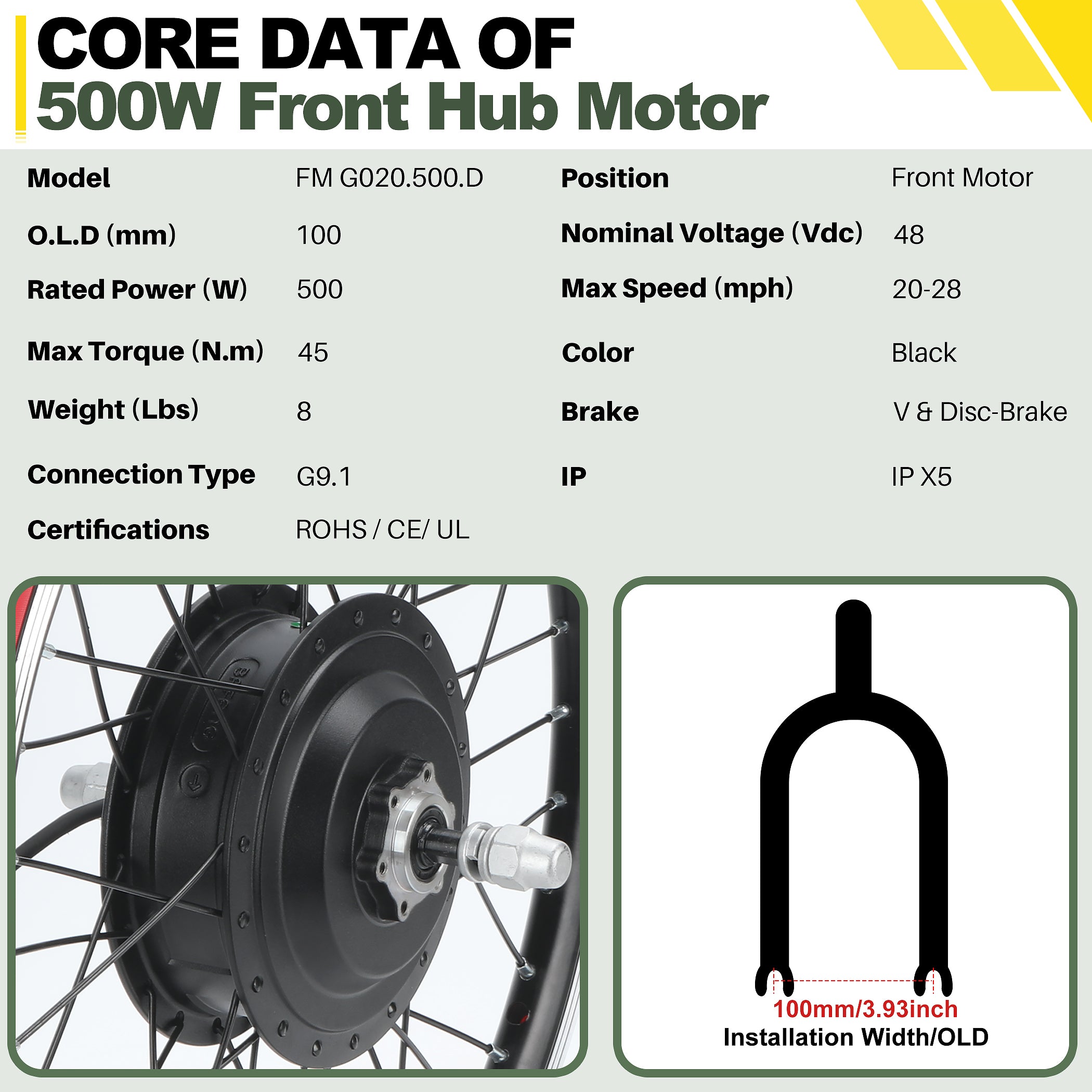

Product Specifications
-
Model: FM G020.500.D
-
O.L.D (mm): 100
-
Rated Power (W): 500
-
Max Power (W): 900
-
Max Torque (N.m): 45
-
Weight (lbs): 8
-
Connection Type: G9.1
-
Position: Front Motor
-
Nominal Voltage (Vdc): 48
-
Max Speed (mph): 20-28
-
Color: Black
-
Brake System: V & Disc Brake
-
IP Rating: IPX5
-
Certifications: ROHS / CE / UL

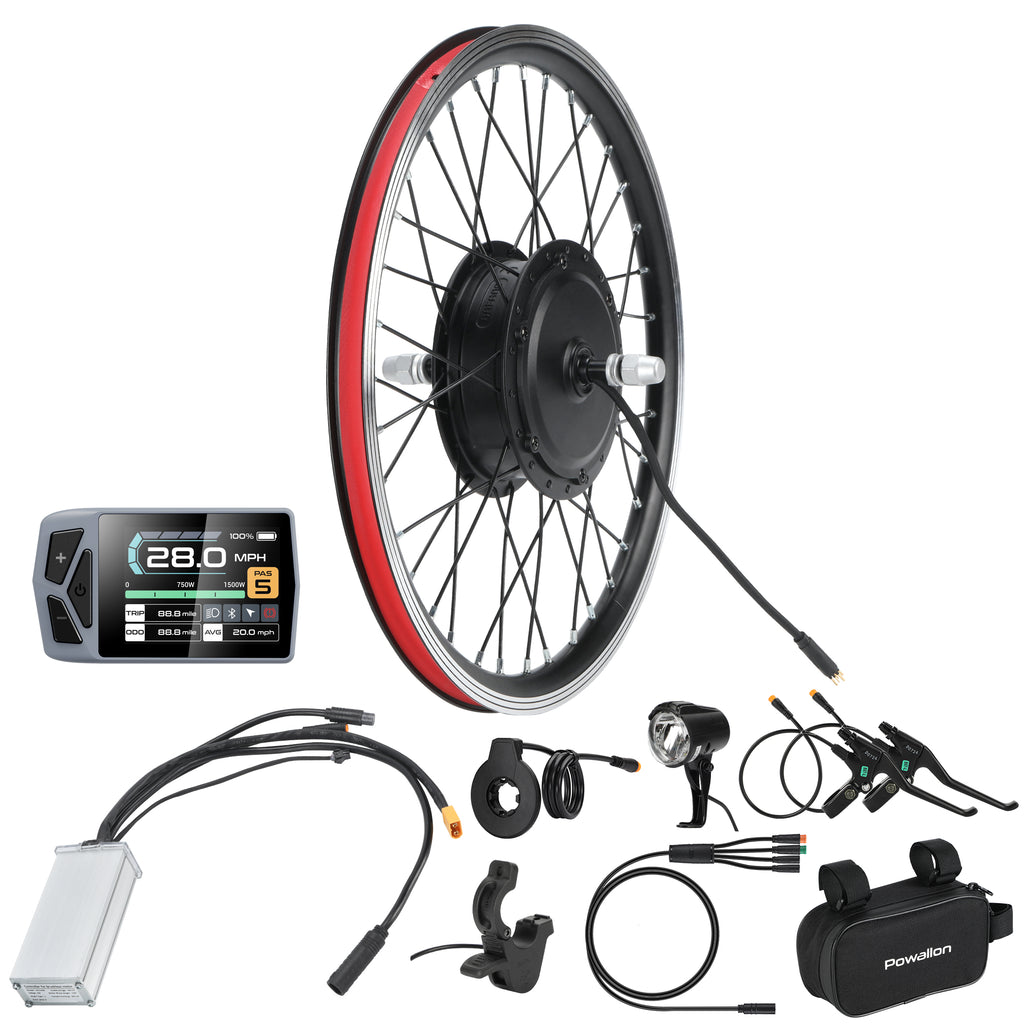

What's Included
-
48V 500W Front Motor Assembly
-
Controller
-
Display (optional)
-
Headlight
-
Pedal Assist Sensor
-
1T4 Wiring Harness
-
Quick Release Throttle
-
Power Cut-off Brake Lever (optional)
-
Controller Bag
